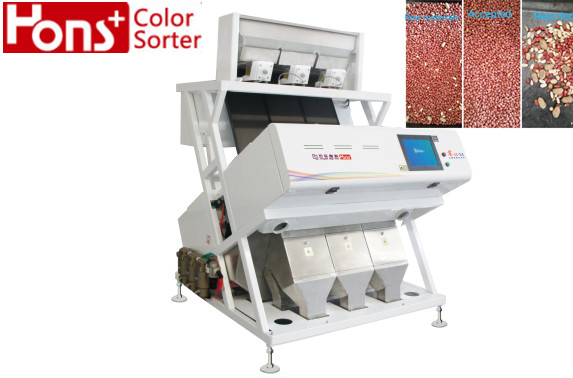

Rgb Multiple Function Peanut/Walnut Ccd Camera Color Sorting Machine
Products Characteric
1. World-class industrial-grade 5400-pixel CCD true color linear array lens, high-precision identification of color-changing materials 2. The domestic leading quality injection valve has a service life of more than 1 billion times, high sorting accuracy and easy maintenance. 3. Intelligent interface based on ARM chip and Linux operating system, easy to operate. 4. The high-speed dedicated micro-data processing system greatly improves the speed and efficiency of data processing and effectively increases the output of the machine. 5. High brightness and long service life LED lights need to sort different materials without changing the light source. 6. The new algorithm technology for various materials, the sorting effect is better. 7. Advanced special slide rails reduce friction and facilitate maintenance work. 8. The new model design makes the operation more stable, improves the accuracy and reduces the breakage rate. 9. The patented intelligent vacuuming system can quickly remove the light objects and dust attached to the material, ensure the sorting accuracy and improve the efficiency of the machine. Technical Paraments
| Name | S1 | S2 | S3 | S5 | S7 |
| Model | 6SXM-63 | 6SXM-126 | 6SXM-189 | 6SXM-315 | 6SXM-441 |
| Capacity(Kg/H) | 4000Kg-8000Kg | 8000Kg-1600Kg | 2000KG-3000KG | 4000Kg-5000Kg | 5000Kg-6000Kg |
| Voltage(V) | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ |
| POWER(KW) | <1.5 | <2.0 | <2.4 | <3.0 | <4.0 |
| Weight(KG) | 350Kg | 500Kg | 800KG | 1250Kg | 1600Kg |
| Dimension(L*W*H/MM) | 910*1620*1550 | 1220*1620*15500 | 1628*1595*2040 | 2210*1595*2010 | 2836*1595*1850 |
| Air Consumption | 0.9 m³/min | 1.8m³/min | 1.8 m³/min |
1.8 m³/min |
3 m³/min |
| Air pressure | 0.6-0.8mpa | 0.6-0.8mpa | 0.6-0.8mpa | 0.6-0.8mpa | 0.6-0.8mpa |
| Air compressor power | 4kw | 5.5Kw | 7.5KW | 11kw*2 | 15kw*2 |
| Air tank | | 300L | 600L | 1000L | 1000L |
| Cooling Model | wind cooling | wind cooling | wind cooling | wind cooling | wind cooling |
| Mini Resolution( mm²) | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 |
Remarks:The parameters arebased on sticky rice impurity 2%,actual output changesaccording to the impurity of raw material.
Sortiing materials
Food materials
rice, wheat, corn, soybeans, peanuts, sunflower seeds, walnuts, almonds, quinoa, salt, medler, pistachios, green beans, chili, red beans, etc.
Plastic material:
Waste plastic, plastic pellets, plastic pieces, plastic granules, PET bottle cap flakes, PET bottle scraps, ABS plastic flakes, PP plastic scraps, recycled plastics, etc.
Mineral material:
Examples: quartz stone, quartz sand, potassium feldspar, barite, calcite, limestone, pearls, marble, etc.
About us
1. Over 10 years experience which focus on sorter machine. One of the most advanced manufacturer in Hefei, Anhui.
2. After-Sales service guarantee: We have a professional after sales service team, one-to-one customer service to help customers install and debug.
3. We have service station over Southeast Asia, co-operate re-seller in more than 50 countries.
4. Quality assurance of raw materials: the raw material we purchase are certified qualified products.
5. Quality process assurance: We have been authorized by CE & ISO quality management system, each process of production are under strictly standard.
6. System test: Our technical engineers check the product performance, even every part is subjected to rigorous aging test to ensure that the factory products would being in full compliance with customer requirements.
7. Shipping guarantee: We have professional packaging operation team, independent export qualification to ensure product safety and stability to reach customers in the hands.
